Electrostatic Panel Assembly



The heart and soul of MartinLogan speakers.

The heart of every MartinLogan ESL Series speaker is a see-through electrostatic panel, comprising an extremely low-mass, coated-polymer diaphragm sandwiched between two curved sheets of perforated steel called stators. This proprietary Curvilinear Line Source (CLS&tsrade;) design has earned a U.S. patent and many awards—not to mention a lot of nice comments from our customers.

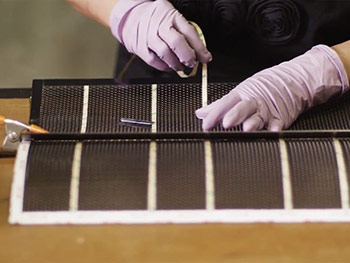

Building a MartinLogan electrostatic transducer.

Stator fabrication is a lengthy process that involves more than 100 steps (including some that are closely guarded trade secrets) and extensive labor. It starts with a custom tool that punches a distinctive pattern of many small holes in a steel sheet. We then coat the perforated metal with a Nylon insulator and fire it in a huge oven at over 575 degrees Fahrenheit to fuse the Nylon directly to the steel. This not only provides critical insulation but also eliminates the need for a grille cloth, which could degrade sound quality. Each stator is arc tested to 10,000 volts (twice the panel's working voltage). The next step is to form a pair of stators into a 30-degree arc, which provides a curved armature for the diaphragm and, in turn, MartinLogan's signature Curvilinear Line Source sound dispersion.

The ultra-light, 0.0005-inch-thick polyethylene terathylate (PET) diaphragm is plasma-deposited with a conductive coating in a $20-million, oxygen-free argon environment chamber. This ensures extreme consistency across the diaphragm surface and enables it to accept high voltages without danger of arcing.

In the most time-consuming and delicate process of all, the finished diaphragm is stretched over multiple spacing elements (called spars), which hold it at a precise distance between the two stators. The final step is attachment of the electrical power supply and signal connectors.

Building a MartinLogan electrostatic transducer.

One of the most notable production steps in XStat assembly is a proprietary vacuum-bonding process. Each fully assembled panel is placed inside a flexible vacuum chamber that compresses it evenly across its entire surface, assuring ultimate consistency across every square inch.
