CLX

Reserve ESL Series


Customizable, starting at
$21,832 per pair

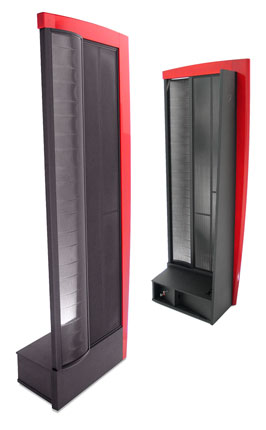

High Gloss Aniline Red: Art Frame

CLX


The World's Finest Full-Range Electrostatic Line Source Loudspeaker.

The CLX delivers the truth – the culmination of everything we have learned about electrostatic technology since we brought our first product to market in 1983. Purity of sound permeates your entire room and satisfies even the most critical ear. The new industry benchmark for resolving detail, CLX utilizes dual electrostatic transducers to render the most complex musical passages as faithfully as a crystal prism disperses the full color spectrum. This is the limitless spectrum of the CLX – the absolute truth in musical reproduction.


Choose a Finish


Linear Frame
Maple - Linear Frame Natural Cherry - Linear Frame Dark Cherry - Linear Frame

High Gloss Art Frame (additional cost)
High Gloss Maple: Art Frame High Gloss Natural Cherry: Art Frame High Gloss Dark Cherry: Art Frame High Gloss Aniline Red: Art Frame High Gloss Aniline Orange: Art Frame High Gloss Aniline Yellow: Art Frame High Gloss Aniline Green: Art Frame High Gloss Aniline Blue: Art Frame High Gloss Aniline Violet: Art Frame





Frequency Response

56–23,000 Hz ±3dB

Horizontal Dispersion

30°

Vertical Dispersion

57" (145cm) line source

High Frequency Transducer

XStat™ CLS™ electrostatic transducer

» Panel Dimensions

57" × 8.6" (144.8 × 21.8cm)

» Radiating Area

490 in2 (3,157 cm2)

Low Frequency Transducer

DualForce™ double diaphragm, triple stator dipole low-frequency electrostatic transducer

» Panel Dimensions

57" × 11.5" (144.8 × 29.2cm)

» Radiating Area

656 in2 (4,228 cm2)

Sensitivity

90 dB/2.83 volts/meter

Impedance

6 Ohms, 0.7 at 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers.

Recommended Amplifier Power

20‒450 watts per channel

Crossover Frequency

360Hz

Components

Thick film on alumina substrate resistors, air core coils, polypropylene capacitors, and custom wound toroidal audio transformers

Lighting

Light intensity dimmer controls

Inputs

Custom binding posts

Weight

110 lbs. (50 kg)

Dimensions

70.32" × 25.75" × 14.69"
(178.6cm × 65.4cm × 37.3cm)

Specifications are subject to change without notice.
