Voyage

DISCONTINUED

Launched in 2004

Price when discontinued: Customizable, starting at
$1,995 each


White Cloth

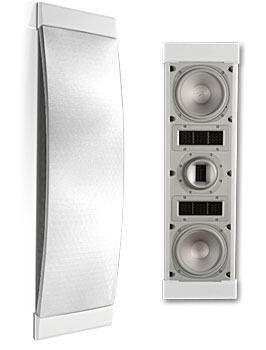

Voyage


Ultimate Performance In-Wall

The world's most sophisticated and elegant architectural loudspeaker, Voyage sounds so clean and dynamic, you'd think it were a superb standalone design. Not surprising, since it borrows so much from our own, including Advanced Thin Film drivers and high-resolution woofers. A rigid aluminum chassis and die-cast mounting locks enhance performance and ease installation, while an adjustable tweeter-alignment sphere, paintable end caps, and a selection of grille colors provide incredible adaptability.


Choose a Finish


White Cloth Silver Cloth Black Cloth

Voyage is not available in paintable white metal perf.





Frequency Response

40–20,000 Hz ±3dB

High Frequency Transducer

1.5" × 2.25" (3.8 × 5.7 cm) ATF™ Transducer

Aiming

20 degrees in all directions. 90 degrees rotation.

Mid Frequency Transducer

Two 1.5" × 6" (3.8 × 15.2 cm) ATF™ Transducer

Low Frequency Transducer

Two 8" (20.3cm) high rigidity aluminum cones with extended throw drive assembly

Sensitivity

91 dB/2.83 volts/meter

Impedance

5 Ohms. Compatible with 4, 6, or 8 Ohm rated amplifiers.

Recommended Amplifier Power

20‒400 watts per channel

Crossover Frequency

350, 3000 Hz

Components

Air core coils, polypropylene, metal film, and low dissipation electrolytic capacitors

Inputs

Binding posts

Weight

25.5 lbs. (11.6 kg)

Dimensions (overall size)

35.875" × 10.5" × 5.625"
(91.1cm × 26.7cm × 14.3cm)

Required Wall Opening (includes tolerance)

9.125" × 34.3125"
(23.2cm × 87.2cm)

Projection From Wall Surface

1.875" (4.8cm)

Depth Behind Wall Surface

3.75" (9.6cm)

Specifications are subject to change without notice.
