$2,095 each

Quick specs:

  • 5.4" x 15" XStat™ CLS™ Transducer
  • 1" x 1.4" Folded Motion Tweeter
  • Two 5.25-inch Aluminum-Cone Woofer
  • Precision Built Vojtko™ Filter

Motif X Manual & Brochure





Motif X Specifications



Frequency Response

73–20,000 Hz ±3dB

Horizontal Dispersion

30°

High Frequency Transducer

One 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.

Mid Frequency Transducer

Patented CLS™ XStat™ electrostatic transducer

» Panel Dimensions

5.4" × 15" (13.7 × 38.1cm)

» Radiating Area

81 in2 (522 cm2)

Low Frequency Transducer

Two 5.25" (13.4 cm) cast basket, aluminum cone with extended throw driver assembly, non-resonant asymmetrical chamber format; shielded

Sensitivity

89 dB/2.83 volts/meter

Impedance

6 Ohms. Compatible with 4, 6, or 8 Ohm rated amplifiers.

Recommended Amplifier Power

20‒300 watts per channel

Crossover Frequency

460, 4000 Hz

Components

Air core coils

Inputs

Custom binding posts

Weight

22.5 lbs. (10.2 kg)

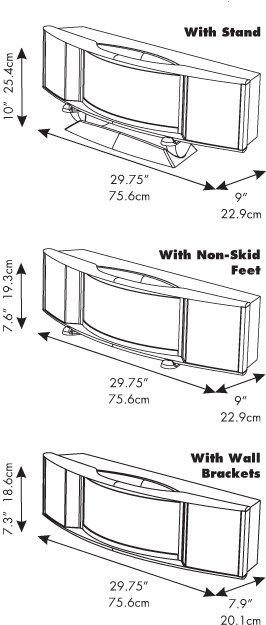

Dimensions (with non-skid feet)

7.6" × 29.75" × 9"
(19.3cm × 75.6cm × 22.9cm)

Dimensions (with stand)

10" × 29.75" × 9"
(25.4cm × 75.6cm × 22.9cm)

Specifications are subject to change without notice.
