Ascent i

DISCONTINUED

Launched in 2003

Price when discontinued: Customizable, starting at
$4,495 per pair


Red Aniline Dye

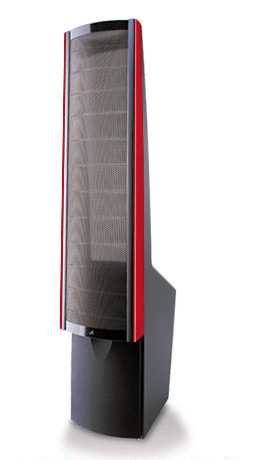

Ascent i


Precision and Practicality

Ascent i expresses MartinLogan's signature language of form and function, maintaining controlled dispersion with outstanding dynamic range, imaging, and detail—all from a rigidly braced, sculpted cabinet that is sleek and beautifully finished. The soundstage, openness, and accuracy exhibited by Ascent i's large, reference-quality electrostatic transducer, high-resolution woofer, and audiophile-grade crossover allow the Ascent i to excel as a stereo or home theater front-channel in any room.


Choose a Finish


Natural Cherry Dark Cherry Black Oak Maple Light Oak Dark Oak Mahogany Walnut

Red Aniline Dye Purple Aniline Dye Blue Aniline Dye Green Aniline Dye Yellow Aniline Dye Blue Aniline Dye Piano Black Aluminum





Frequency Response

35–22,000 Hz ±3dB

Horizontal Dispersion

30°

Vertical Dispersion

48" (122cm) line source

High Frequency Transducer

48" (122cm) Generation 2 CLS™ electrostatic transducer

Low Frequency Transducer

10" (25.4cm) high excursion, high rigidity cone with extended throw drive assembly, non-resonance chamber format

Sensitivity

90 dB/2,83 volts/meter

Impedance

4 Ohms, 1.2 at 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers.

Recommended Amplifier Power

20‒400 watts per channel

Crossover Frequency

280 Hz

Components

Custom wound audio transformer, polypropylene capacitors, air core coils

Audio Controls

Bass Control Switch: -3dB below 200Hz

Inputs

Custom 5-way bi-wire binding posts

Weight

72 lbs. (32.5 kg)

Dimensions

64" × 13" × 22"
(1626cm × 33cm × 55.9cm)

Specifications are subject to change without notice.
