Discrete Channels. Discreet Style. Bold Sound.

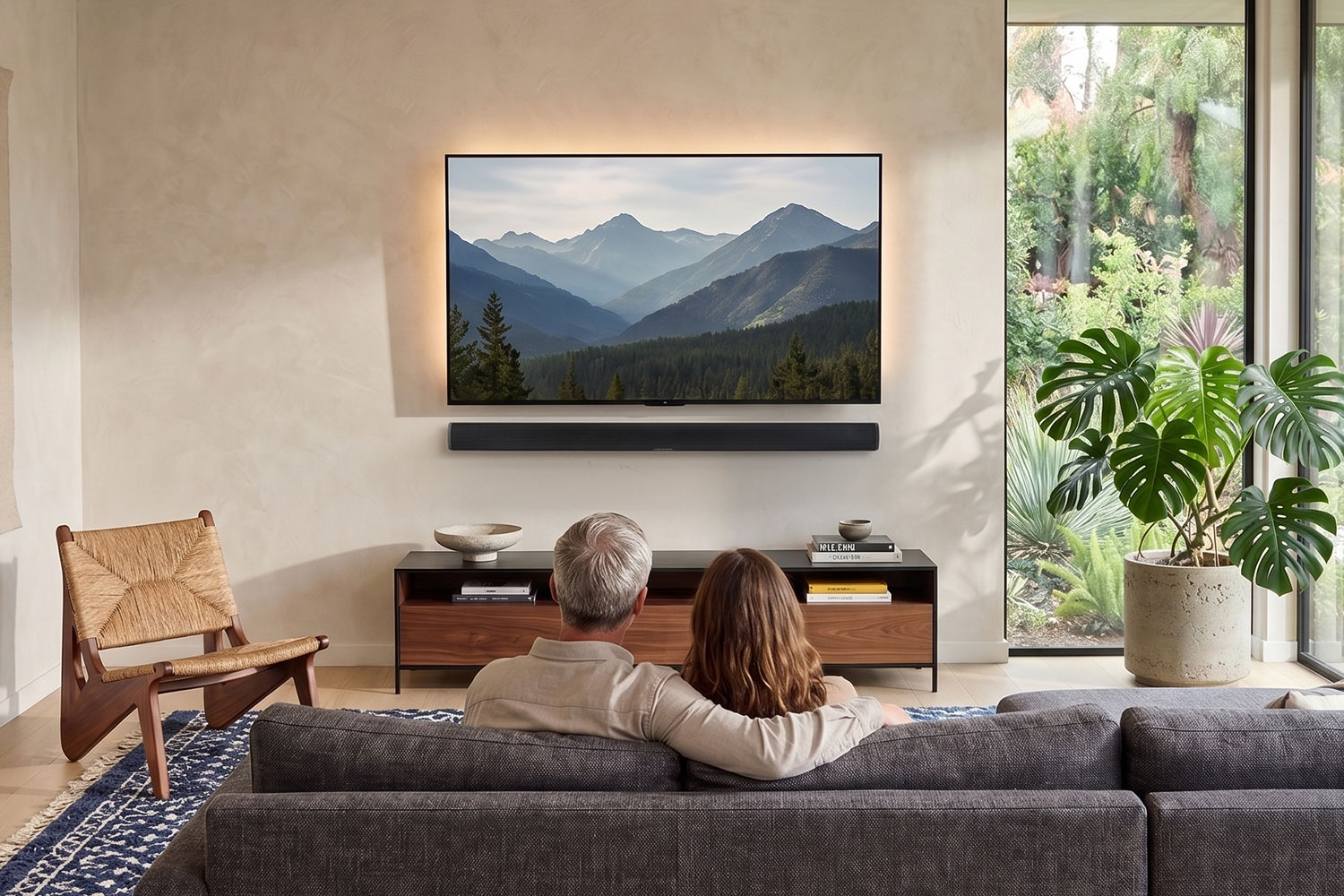

The Motion® Discrete Cinema Series does more than just mirror the physical size of a television; it matches the Acoustic Scale. As screen sizes move from 65” to 85”, we don’t just add “length”—we add capability. By scaling driver density alongside screen real estate, we eliminate the “acoustic-visual gap,” ensuring the soundstage is as expansive and authoritative as the image it accompanies.
|
Design |
15-driver; Sealed Aluminum Cabinet |
|
Crossover |
2.5 way |
|
Application |
Three Channel Soundbar (passive, requires amplification) |
|
Midrange / Bass Drivers |
12x 4" Woven Fiberglass Unibody Cones, 1.5" high-temp voice-coils |
|
Frequency Response |
100–25,000 Hz ± 3 dB |
|
Tweeter Dispersion (horizontal x vertical) |
90° x 90° |
|
Recommended Amplifier Power |
20-280 Watts |
|
Sensitivity |
93 dB/2.83 volts/meter |
|
Impedance |
4 Ohms. Compatible with 4, 6 or 8 Ohm rated amplifiers |
|

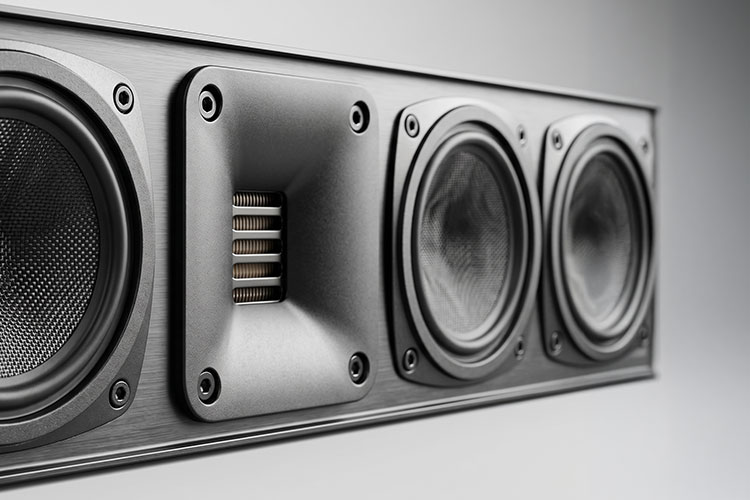

High Frequency Driver |
3x 1" x 1.4" (2.6cm x 3.6cm) Gen2 Folded Motion Tweeters (FMT) with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragms and Folded Motion Waveguides |
|
Weight |
20 lbs. (9.1kg) |
|
Dimensions (H x W x D) |
4.76" x 74.1" x 2.37" |
