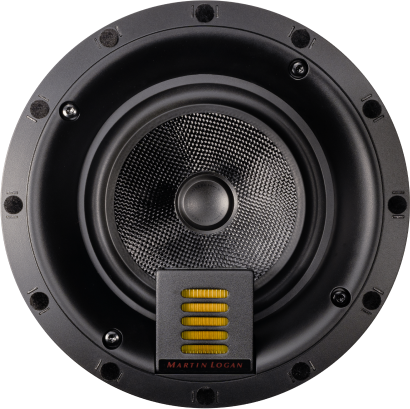

Motion MC6

By far the most popular size for in-ceiling speakers, the MC6 features a 6.5” woofer with higher power handling, greater output capability, and improved bass response over the smaller MC4. This model works without a built-in enclosure to allow the speaker to use more airspace for higher performance. For applications where sound control is desired, an optional retrofittable back enclosure is available separately. As with all Motion series CI speakers, the MC6 uses MartinLogan’s signature Folded Motion Tweeter for precise clarity and incredible realism to meet all your entertainment needs.


$449.99 each
Find a Dealer


All MartinLogan Motion CI Series speakers feature our signature Folded Motion Tweeter or FMT. This innovative piece of audio technology provides incredible detail, precise clarity, clean output and high efficiency in a small but mighty package. Pairing this tweeter with lightweight woven fiberglass woofers means that Motion CI delivers a clean and balanced sound that is perfectly suited for any application. Whether you listen to music, movies or a little bit of everything, Motion CI gives you a true high-end audio experience at an affordable price. To round out the assortment, pre-construction brackets are available for all models, and all in-ceiling models have square grilles and retrofittable back enclosures available separately.

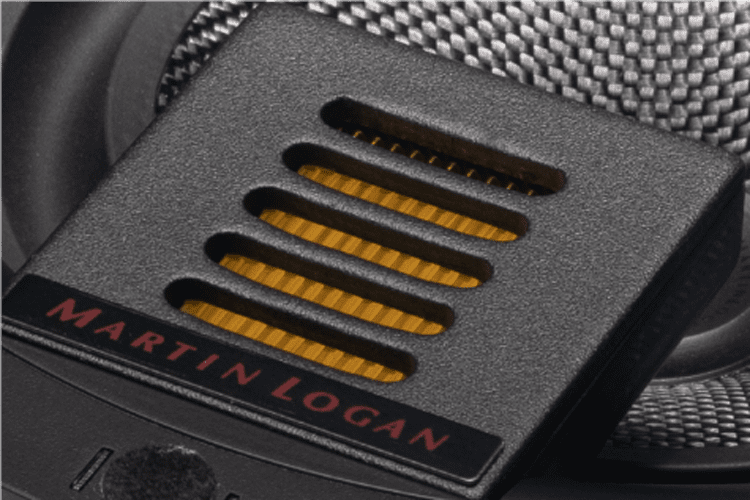

The Sound of Invisibility:
Folded Motion® Tweeters

MartinLogan's signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that "squeezes" air, thus requiring significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that delivers much of the high-frequency detail, speed and response of a large, dynamic electrostatic panel in a small space.

This thin-film transducer design packs all the accuracy and delicacy of an electrostatic panel into a small space. Folding the dramatically lightweight film into an accordion-like structure increases the surface area, giving Folded Motion tweeters eight to ten times greater surface area than typical tweeters. This ideal combination of light and large produces superior accuracy, extended frequency bandwidth and higher output capability; all with a faster, more efficient transient response, and virtually zero distortion. In these characteristics, the Folded Motion Tweeter design can mimic the performance of a large electrostatic panel in the confines of a more traditional loudspeaker enclosure.

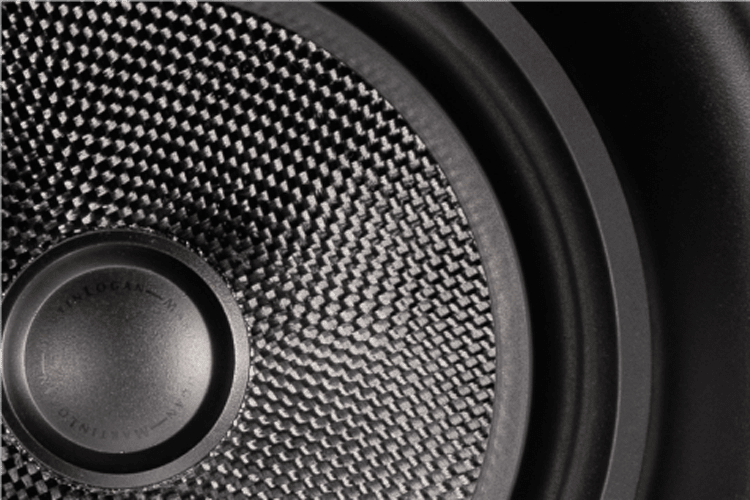

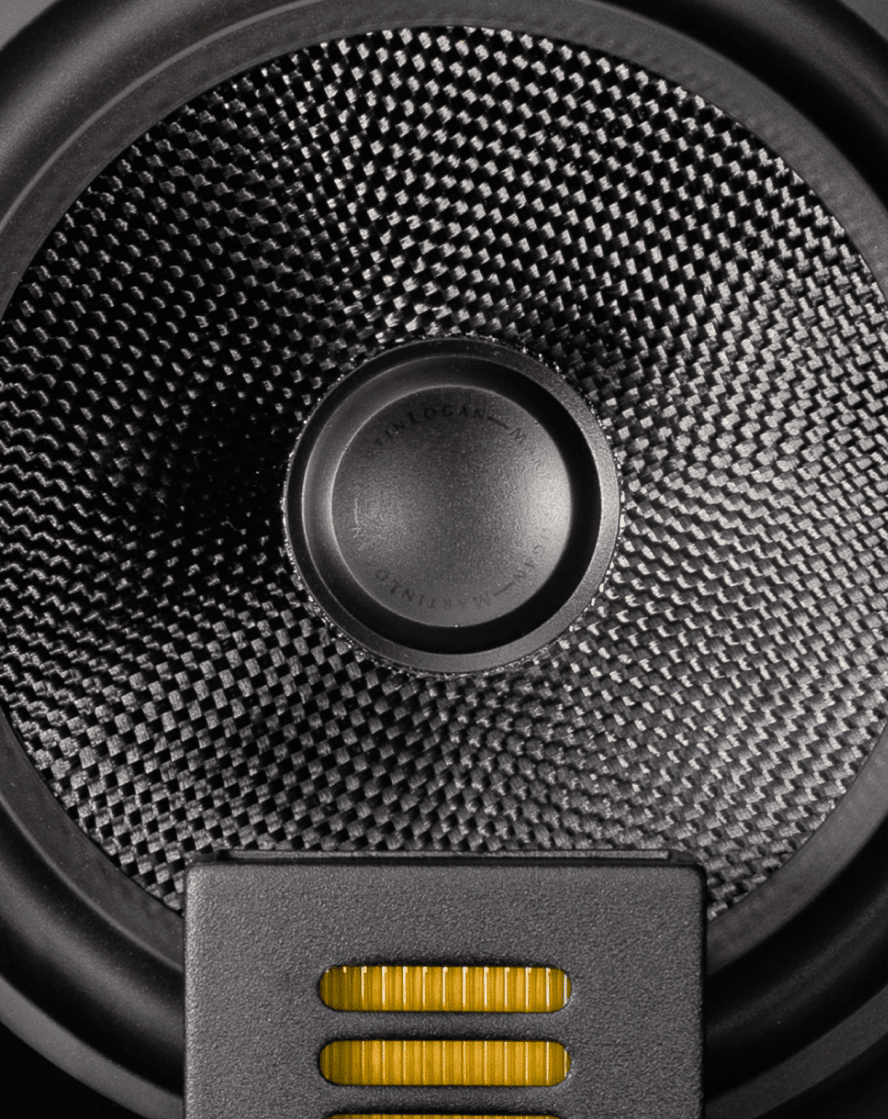

Woven Fiberglass Cones

All Motion CI speakers feature lightweight woven fiberglass cones specifically engineered for their application to blend seamlessly with the lightning speed of our signature Folded Motion Tweeter. No matter which Motion CI speaker you choose for your room, rest assured they are designed to provide a consistently high level of performance and can easily be used with other MartinLogan speakers to make creating the perfect system for your unique listening space that much easier.

The MartinLogan Sound

MartinLogan Motion CI speakers sound great in any room. Regardless of the environment, our speakers just sound better, more articulate, more detailed, and more realistic. With Controlled Dispersion and one of the most responsive tweeters in the industry, our in-wall and in-ceiling models can compete with and often exceed the performance of traditional cabinet speakers.MartinLogan Motion CI speakers sound great in any room. Regardless of the environment, our speakers just sound better, more articulate, more detailed, and more realistic. With Controlled Dispersion and one of the most responsive tweeters in the industry, our in-wall and in-ceiling models can compete with and often exceed the performance of traditional cabinet speakers.

Want to learn more about controlled dispersion

Spring-Loaded Binding Posts

With easy pre-installation access, our spring-loaded binding posts feature a large 4.5mm wire access hole and connect via banana plug, pin, or 12AWG bare wire.

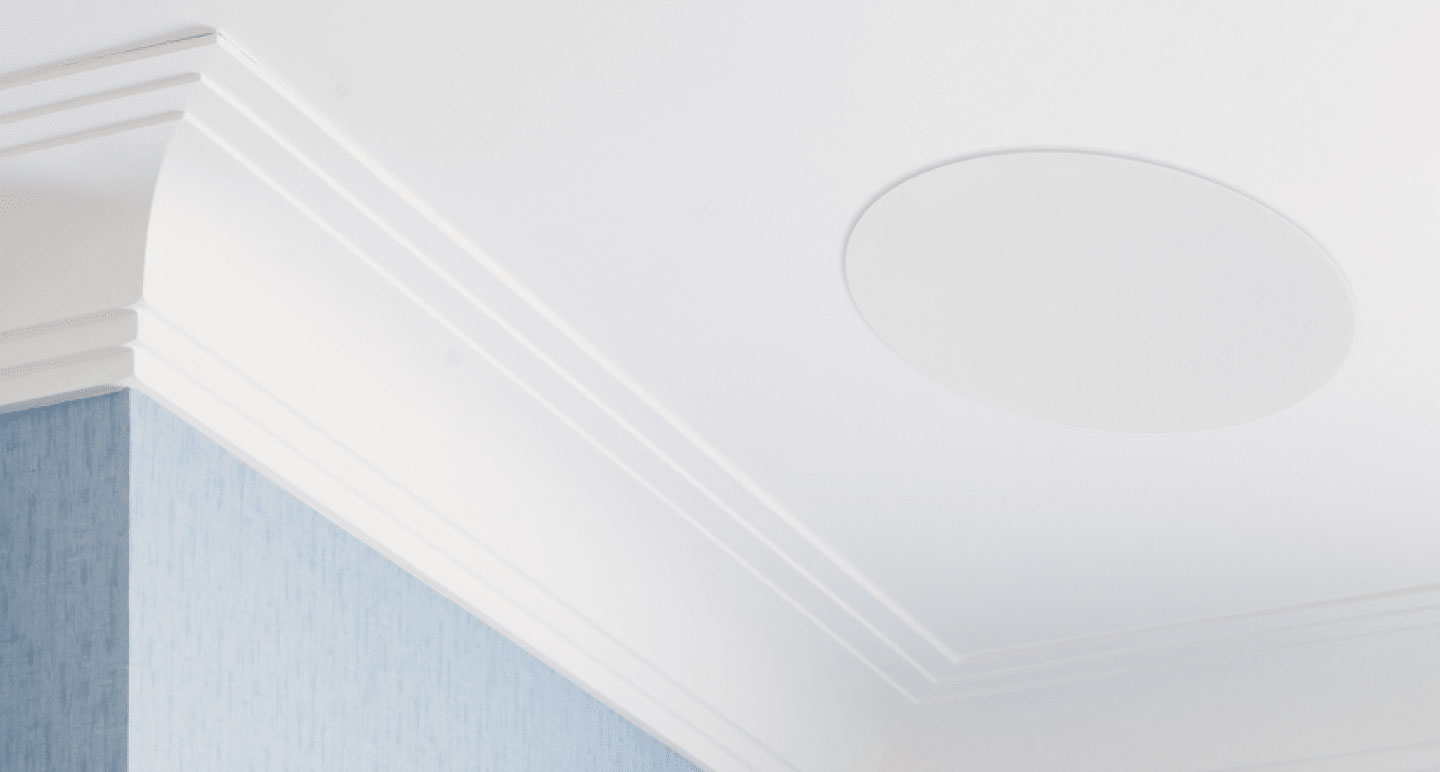

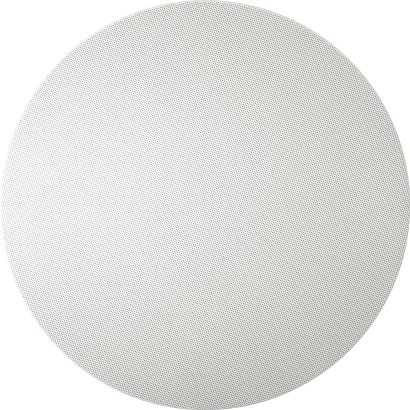

Micro-Perforated Grilles

MC6 features an ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. Optional square grilles are available for the MC6.

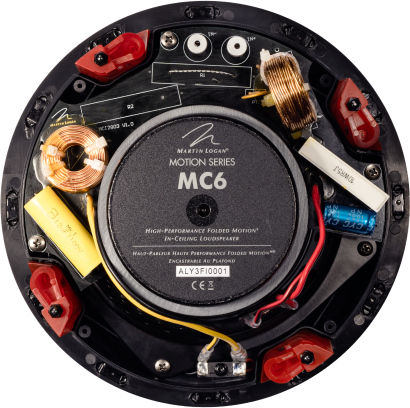

Proprietary Vojtko™ Crossover Networks

Vojtko Crossovers are named after MartinLogan's chief audio technologist,
Joe Vojtko.

His unique approach to crossover design is just as crucial to MartinLogan's Truth in Sound as are our innovative electrostatic and Folded Motion thin-film driver technologies. A Vojtko Crossover isn't just a set of design requirements; it's a philosophy.

Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.

Hand-Selected Components

In designing each crossover topology, we take the drivers themselves into consideration. Carefully selected drivers, engineered for specific performance characteristics, are kept within their optimal frequency range by the custom Vojtko Crossover.

Each crossover is handcrafted using exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. It's a recipe for vanishingly low distortion and seamless driver integration.

The most critical aspect of a Vojtko Crossover design is the final voicing, always conducted in a real-world environment. This uniquely pragmatic approach guarantees that even the most amazing MartinLogan loudspeakers deliver Truth in Sound in any room, including yours.

Optional Retrofit Enclosure

All Motion CI in-ceiling speakers have the option for a retrofittable back can or enclosure. This helps contain the sound coming off the back of the speaker to dramatically reduce unwanted sound that can travel through the floor and up into the living space above the speaker. For those desiring increased bass output, or for when sound control is not required, you can simply choose to use the MC6 without the optional enclosure so it can take full advantage of the larger air volume provided by the space in the ceiling.


Pre-Installation Brackets
(sold separately)

Pre-installation brackets are available for every
model in the Motion CI Series.

Press

Specifications

Specifications are subject to change without notice

Frequency Response

62 - 25,000 Hz ±3dB

Aiming

N/A

Sensitivity

90dB @2.83V/ 1 meter

Impedance

Compatible with 8 ohms

Crossover Frequency

2,570 Hz

High Frequency Driver

FMT Transducer 1” x 1.4” (2.6cm x 3.6cm) Opening 5.25” x 1.75” (13.3cm x 4.4cm) Diaphragm

Low Frequency Driver

6.5” (16.51cm) black
fiberglass cone

Suitable Amplifier Range

50–150 Watts

Max Power Handling

75 Watts

Binding Post Inputs

Push style accommodates
wire up to 12AWG

Weight

5.1 lbs.
(2.31 kg) each

Dimensions (overall size)

8.64” x 4.57”
(21.94cm x 11.61cm)

Required Wall Opening (includes tolerance)

7.65” (19.43cm)
diameter

Projection From Wall Surface

0.31” (0.77cm)

Depth Behind Wall Surface

4.43” (11.26cm)
