Motion XTW6-LCR

In-Wall Speaker

The largest “LCR” model in the Motion XT CI series includes a unique feature that brings its performance level up even higher. In addition to the FMT XT tweeter, and dual 6.5” woven Kevlar Nomex-backed bass drivers, the XTW6-LCR has a dedicated 6.5” midrange driver that brings its acoustic performance to the same level as a traditional floor standing speaker. With a rotating tweeter housing, the XTW6-LCR can be used horizontally when needed, and is the perfect choice for systems desiring a higher level of performance without the large footprint of a tower speaker.


$1,599.99 each
Find a Dealer


The MartinLogan Motion XT CI series takes performance to the next level over Motion CI. The Folded Motion XT tweeter gives each model in the Motion XT series even more of the clarity, output and efficiency that the standard size FMT is famous for. With Motion XT, we wanted to increase all aspects of performance over the Motion series, so we didn’t just stop at the tweeter. All Motion XT models feature woven Kevlar woofers for increased rigidity and lightness as well as a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. In addition to the larger tweeter, and lighter, stronger woofers, MartinLogan’s design and engineering team has fitted the Motion XT series with a more substantial chassis to strengthen the speaker and provide a more accurate sound, similar to a better cabinet on a traditional speaker. The Nomex layer and the chassis are not something you can see after installation, but it matters to the performance of the speaker, so it matters to us. With Motion XT CI, the difference is in the details.

The Sound of Invisibility:

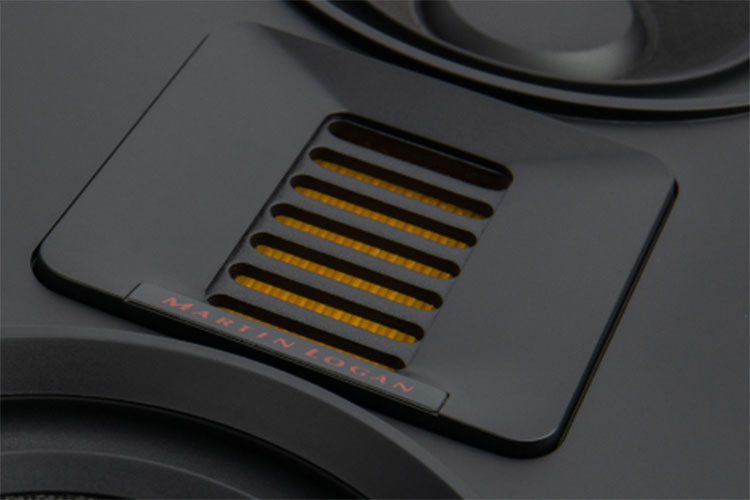

Folded Motion® Tweeters

MartinLogan's signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that "squeezes" air, thus requiring significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that delivers much of the high-frequency detail, speed and response of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters advance thin-film transducer technology even further with a 40% larger radiating surface and 80x30-degree controlled dispersion. This upgrade increases audible bandwidth without sacrificing detail and reduces distortion to an incredibly low level while increasing efficiency and the tweeter's already lightning-fast response time. The result is superior realism and alarming specificity that is aurally astounding, and only by MartinLogan.

This thin-film transducer design packs all the accuracy and delicacy of an electrostatic panel into a small space. Folding the dramatically lightweight film into an accordion-like structure increases the surface area, giving Folded Motion tweeters eight to ten times greater surface area than typical tweeters. This ideal combination of light and large produces superior accuracy, extended frequency bandwidth and higher output capability; all with a faster, more efficient transient response, and virtually zero distortion. In these characteristics, the Folded Motion Tweeter design can mimic the performance of a large electrostatic panel in the confines of a more traditional loudspeaker enclosure.

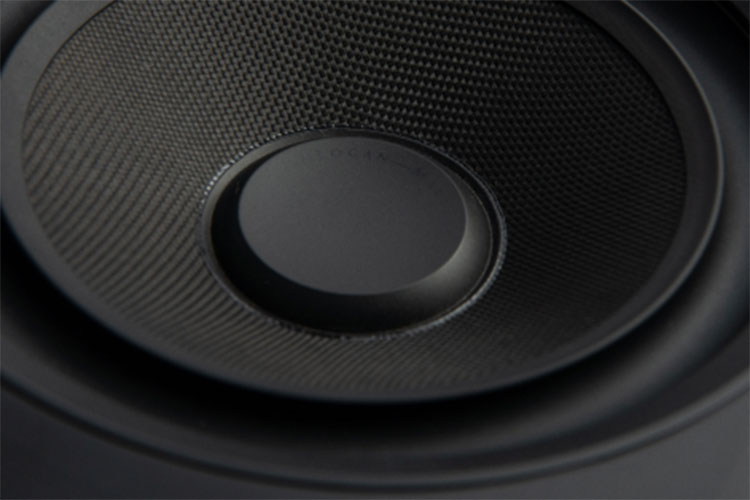

Woven Kevlar Cones

All Motion XT CI speakers feature very lightweight woven Kevlar cones specifically engineered to keep pace with the lightning speed of our highest performance Folded Motion Tweeter XT. While these high-performance drivers offer both increased rigidity and lightness, we took an extra step by adding a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. This layer is not something you can see after installation, but it matters to the performance of the speaker, so it matters to us. The sealed, dedicated midrange of the XTW6-LCR also allows it to resolve more detail and clarity while increasing its output capability. No matter which Motion XT CI speaker you choose for your room, rest assured they are designed to provide a consistently high level of performance and can easily be used with other MartinLogan speakers to make creating the perfect system for your unique listening space that much easier.

The MartinLogan Sound

MartinLogan Motion XT CI speakers sound incredible in any room. Regardless of the environment, our speakers just sound better, more articulate, more detailed, and more realistic. With Controlled Dispersion and one of the most responsive tweeters in the industry, our in-wall and in-ceiling models can compete with and often exceed the performance of traditional cabinet speakers.

Learn About Controlled Dispersion

Spring-Loaded Binding Posts

With easy pre-installation access, our spring-loaded binding posts feature a large 4.5mm wire access hole and connect via banana plug, pin, or 12AWG bare wire.

Micro-Perforated Grilles

All MartinLogan architectural speakers feature an ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation.

Proprietary Vojtko™ Crossover Networks

Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko.

His unique approach to crossover design is just as crucial to MartinLogan's Truth in Sound as are our innovative electrostatic and Folded Motion thin-film driver technologies. A Vojtko Crossover isn't just a set of design requirements; it's a philosophy.

Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.

Hand-Selected Components

In designing each crossover topology, we take the drivers themselves into consideration. Carefully selected drivers, engineered for specific performance characteristics, are kept within their optimal frequency range by the custom Vojtko Crossover.

Each crossover is handcrafted using exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. It's a recipe for vanishingly low distortion and seamless driver integration.

The most critical aspect of a Vojtko Crossover design is the final voicing, always conducted in a real-world environment. This uniquely pragmatic approach guarantees that even the most amazing MartinLogan loudspeakers deliver Truth in Sound in any room, including yours.

Pre-Installation Brackets
(sold separately)

Pre-installation brackets are available for every
model in the Motion XT CI Series.

Press

Specifications

Specifications are subject to change without notice

Frequency Response

44 - 25,000 Hz ±3dB

Tweeter Dispersion (horizontal x vertical)

80 x 30 degrees

Recommended Amplifier Power

Range 50–300 Watts

Sensitivity

93dB @2.83V/ 1 meter

Impedance

4 ohms. Compatible with 8 ohms

Crossover Frequency

260, 2470 Hz

High Frequency Driver

FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm

Crossover Type

3 way

Driver Configuration

1 x 1.27” x 2.75” FMT, 1 x 6.5” midrange, 2 x 6.5” Woofers

Woofer Specifications

Two 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.

Cabinet Material

Black w/ White Paintable Grill

Connector

Push style

Components

Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.

Max Power Handling

150 Watts

Midrange Driver

One 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Sealed back chamber format. Concave dust cap

Weight

18.9 lbs. each (8.6 kg)

Dimensions (overall size)

28” x 7.69” x 3.67” (71.12 x 19.5 x 9.31cm)

Required Wall Opening (includes tolerance)

6.64” x 27” (16.9 x 68.5cm)

Projection From Wall Surface

0.13” (0.32cm)

Depth Behind Wall Surface

3.54” (8.99cm)
