Vanquish

终极性能天花板

隐身外观,MartinLogan表现。吸顶式扬声器听起来不像。

世界上最精致,最优雅的建筑扬声器,Vanquish听起来如此干净和动感,你会认为它是一个极好的独立设计。这并不奇怪,因为它借用了我们自己的产品,包括Folded Motion XT驱动器和铝锥,高分辨率低音扬声器。坚固的铝制底盘和压铸安装锁可提高性能并简化安装,而可旋转的高音扬声器和无边框磁性格栅可为任何安装提供令人难以置信的适应性。


US$1,599.99 每
寻找经销商

Discreet高性能音频的巅峰之作

介绍三个有史以来最雄心勃勃的建筑扬声器; Axis,Edge和Vanquish,Stealth Architectural系列的所有部分。每个扬声器利用我们的大,低失真折叠准XT高音喇叭,具有黑-铝,高偏移低音和中音驱动器,一种先进的拓扑分频网络与聚丙烯和低DF电解电容器,定制缠绕电感器,和热沿着和当前的保护。高级线材连接,光泽钢琴黑色扬声器挡板隐藏所有安装硬件,坚固的一体式铸铝底盘和无边框磁性格栅使Stealth系列成为一个独特的类别。


折叠准XT高音

标志性折叠式运动高音扬声器采用极低质量的振膜“挤压”空气,与典型的1英寸球顶高音扬声器相比,所需的偏移量大大减少,从而大大减少了失真,同时提供了闪电般的快速响应时间。增加的表面积还提供宽广但受控的声音分散,以创建逼真且精心蚀刻的声场。

低失真折叠式运动XT高音扬声器的散热面比屡获殊荣的Motion®系列产品大40%。这种大幅度的飞跃可以提高高性能高音扬声器的带宽和效率,从而实现轻松的性能。

设计与美学

隐形系列扬声器设计为在视觉上消失在房间内,每个都有一个完全无边框,低调,可涂漆的格栅,用于最终的隐形安装。我们的内部设计和工程团队还将格栅的穿孔金属孔最小化,以创造更加谨慎的外观,同时不影响声音质量。磁性系统可轻松将格栅固定到位,从而降低安装过程中翘曲或损坏的风险。

我们还为那些想要展示其高性能入墙式或吸顶式扬声器的人们提升了格栅下方的外观。通过嵌入式3/4英寸实心高光钢琴黑色挡板将驱动器补充装置牢固固定,可隐藏所有安装硬件。

先进的技术

其复杂声音的关键是高级拓扑Vojtko™分频网络。每个分频器都建立在双层超厚黑色PC板的顶部,并采用最高质量的组件构建。内部构件包括大型空心线圈,厚实,高纯度的16规格铜线和低失真聚丙烯电容器,可确保音频信号的每个细微差别得以保留。

快速,无故障安装

Vanquish包括两个拨动开关,可根据用途调整性能;左前,右前,中央通道,左环绕或右环绕。

MartinLogan Stealth Series Vanquish and Axis Speakers Reviewed

"The MartinLogan Stealth line of architectural speakers impressed me. Their build and component quality is significantly high. It is obvious that much thought went into the design of these speakers, and the results are ultra high-end. MartinLogan has created a quality product that will provide a proud sense of ownership. When coupled with the BalancedForce 210 subwoofer, the sum performance was greater than any one speaker's individual achievement. I used to avoid my family room... However, thanks to the addition of the Vanquish and Axis speakers, I now find myself wanting to watch movies in the family room. I would highly recommend this product if you are considering an architectural speaker solution for your space"

—Greg Handy, Home Theater Review
阅读完整的评论»


产品规格

规格如有更改,恕不另行通知

频率响应

37-25kHz±3dB

推荐的放大器功率

每通道20-300瓦

水平分散

80℃

垂直分散

30°

灵敏度

93 dB / 2.83伏/米

阻抗

4 Ohms兼容4,6或8 Ohm额定放大器。

交叉频率

400,850和2,000 Hz

高频传感器

1.25“x 2.4”(3.2cm x 6.1cm)折叠式运动XT传感器,带4.5“x 2.75”(11.4cm x 7cm)光圈。

中频传感器

两个3.5英寸(8.9厘米)铝制圆锥,带冲压钢制篮。凹形防尘帽。

低频传感器

8“(20.32cm)铝制锥形,带铸铝篮。凹形防尘帽。

组件

定制空心线圈电感器。串联聚酯薄膜电容器和低DF电解电容器。整体系统热/电流保护。

输入

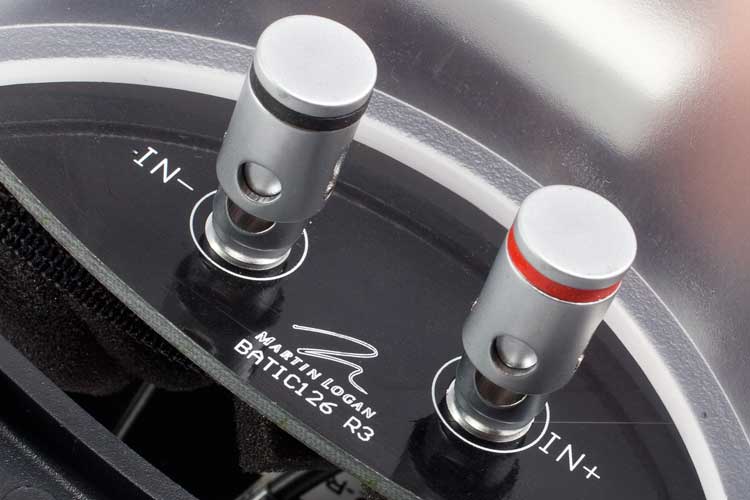

推式绑定帖。

重量

16磅(7.3千克)

切口尺寸

13.1“dia。
(直径33.3厘米)

墙面投影

.2“(。6cm)

墙面后面的深度

6.1英寸(15.5厘米)
