BalancedForce 212

Ultimate Bass

Building on the groundbreaking technology of the original Descent, BalancedForce 212 incorporates new features and enhancements that simplify system integration while improving performance. Its signature two-driver, force-canceling configuration virtually eliminates bass-blurring cabinet resonance. And each rugged, custom-built aluminum-cone driver is driven by sophisticated DSP-based, high-power amplifiers. The result is dynamic, unrestrained output to the very lowest frequencies, yet with clarity and definition approaching that of electrostatic transducers.


$3,995.00 each
Find a Dealer

Ultimate Performance Subwoofers

Chances are you've read or heard at some time that adding a subwoofer to a system built around electrostatic speakers is nearly impossible. Although that's not necessarily true (and we have the subwoofers to prove it), the idea is grounded in experience. For many years subwoofers and electrostats did not blend very well. Turn on the sub and maybe you got the deeper, stronger bass you were looking for but that wonderful electrostatic snap and midrange clarity were, if not gone, now smeared and disconnected.

Our goal, when we began our first subwoofer project, was to deliver the good stuff — deep, tight, powerful bass — and none of the bad. We wanted to build subwoofers that, when combined with ultra-fast electrostatics or conventional cone speakers, would blend seamlessly to the very bottom of the frequency extreme. BalancedForce subwoofers are the full realization of years of engineering by the MartinLogan team combined with the latest innovations in advanced digital signal processing, amplification, electrical system designs, and room correction.

BalancedForce® Alignment

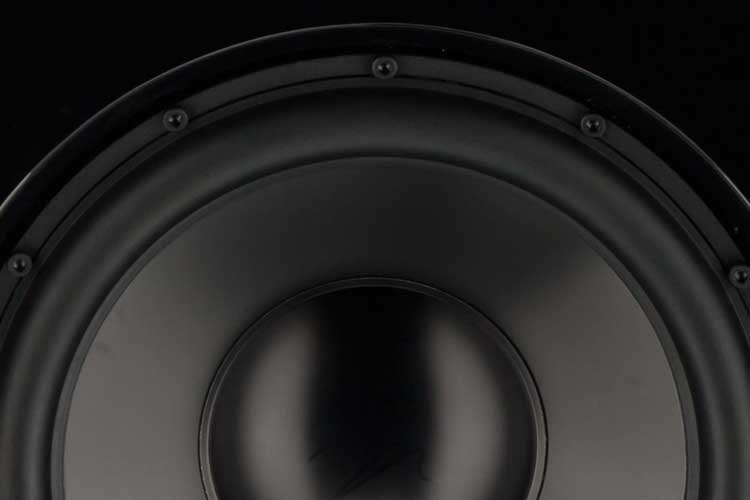

Opposing Aluminum Element Woofers or Deep, Clean Bass

Dual low-distortion woofers pair a high-power magnet structure with 10- and 12-inch aluminum cone diaphragms to deliver huge excursion and sound output while preserving minute bass details, all without a hint of distortion. The cone material's exceptional damping properties ensure the smooth, non-resonant response necessary for seamless blending with high-resolution full-range loudspeakers.

BalancedForce 212

These woofers, spaced 180 degrees apart in a 'BalancedForce' configuration, operate in exact opposition, to nullify distortion causing cabinet vibrations and deliver pure bass energy. Traditional subwoofer enclosures suffer from an equal and opposite reaction to the cone's movement, generating acoustic vibrations within the cabinet. You feel this by touching the cabinet. Although the "physics" of this phenomenon actually cause a subwoofer cabinet to resonate or even dance, most subwoofer designers apply weight or mass to the cabinet to minimize such disturbances, but still leave one byproduct—"smeared bass". BalancedForce is an elegantly simple solution that removes the variable of cabinet vibration contributions from the acoustic equation.

BalancedForce 212



Amplifier Design

Advanced Ultra-Efficient D-Class Amplifier

BalancedForce subs match powerful proprietary switching amps with incredible woofer drivers resulting in tightly defined bass while keeping distortion at the lowest possible levels. The BalancedForce 210 features an 850-watt class-D switching amplifier capable of a 1700-watt peak operating at over 90% efficiency. BalancedForce 212 features dual 850-watt amplifiers (one for each woofer) with a total system power of 1700-watts (3400-watts system peak).

Low-noise, high-power transformers and switching power supplies feature high-quality MOSFET transistors, noise-suppression networks, and control circuitry to provide tremendous levels of current with extremely low levels of distortion. Split power supply rails minimize distortion while maximizing switching efficiency. Military grade glass epoxy circuit boards, temperature sensors, and protection circuitry guarantee quality sound and reliable trouble-free operation.

PBK Room Correction & 25Hz Level Control

Although correct placement plays a key role in optimizing subwoofer performance, positioning a subwoofer often requires compromises. The optional MartinLogan Perfect Bass Kit (PBK, sold separately) uses a computer and microphone to listen throughout the listening environment and tailor the sub's performance to the unique acoustic properties of a room—resulting in clean, powerful bass down to the lowest frequencies.

Additionally, a built-in 25Hz level control allows listeners to adjust subwoofer output by ±10dB and compensate for excessive room gain by cutting output in the 20- to 30-Hz range, or to accentuate the feeling of deep-bass energy by augmenting those frequencies.

BalancedForce 212
BalancedForce 212


Custom Low-Pass Filters for
Individual Loudspeaker Models

Custom tailored low pass filters are available for nearly every floor standing MartinLogan loudspeaker released in the last 30 years. These optional custom filters adjust the subwoofer's low pass settings to seamlessly blend with the roll-off characteristics of individual loudspeaker models. Filters are easily installed via a user-friendly process involving a USB thumb drive and are available for free download. Many unique filters are currently available and additional filters will be added as new speakers are released.



Beautiful Finishes

High-gloss black cabinets and top trim are standard. Top trim is available in a variety of optional high-gloss, hardwood, and real-wood veneer finishes.

BalancedForce 212
BalancedForce 212

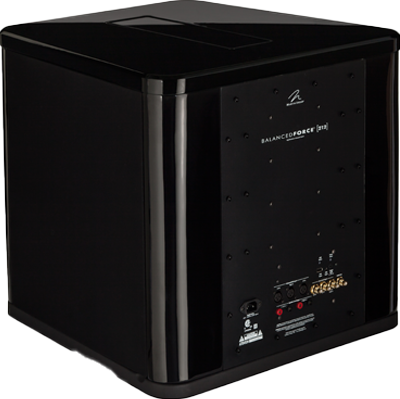

Sealed Cabinets

Although ports are a convenient and cost-effective way of increasing low-frequency output, their reliance on resonant energy impairs bass quality. The BalancedForce subwoofer's sealed system exhibits less transient-blurring group delay while maintaining smooth, consistent response, regardless of music or movie source material.

Multiple Input Options

Simultaneous LFE and 2-Channel Connections for Seamless System Integration

Robust connection and control systems allow simultaneous connection of both 2-channel stereo music and multi-channel home theater and allows each source to have individual crossover and level settings, giving listeners a perfect performance in every application. LFE input via RCA or XLR effectively uses no low-pass filter, leaving crossover control to the processor. Left and right RCA, XLR, and speaker level inputs integrate discrete user-adjustable or speaker specific custom-installed audiophile grade low-pass filters allowing different level and crossover points when playing back two channel music.

BalancedForce 212
BalancedForce 212

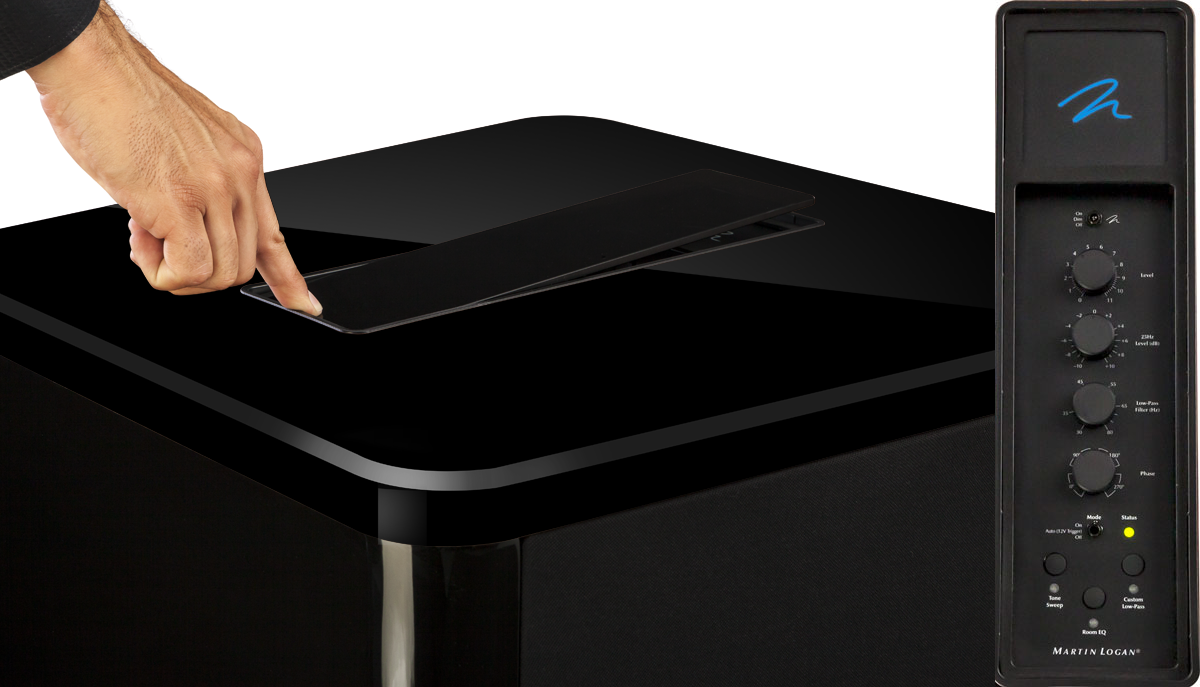

Top Mounted Controls

Top mounted controls are discretely hidden beneath a smoked glass accent panel allowing easy access to fine tune the subwoofer's settings.

Unlimited Adjustments

Access the top mounted control panel by pushing firmly on the smoked glass panel. You'll find all of your standard subwoofer controls like Level, Low-Pass Filter and Phase, plus some that are unique to MartinLogan.

A unique tone sweep feature assists users in locating areas in listening rooms where troublesome rattles or resonances may occur. A single press of a button allows listeners to initiate a tone sweep from 120–20Hz. If a rattle or resonance occurs in the room a second press of the button holds the current frequency allowing the listener to investigate and identify the source.

An 'On/Auto (Trigger)/Off' switch controls the subwoofer's energy saving feature. The 'On' setting prevents the sub from entering energy saving mode. When set to 'Auto (Trigger)', the sub will turn on when a music signal is detected and off after several minutes without a signal. If a 12-volt trigger is connected, the triggering device will turn the subwoofer on and off.

Further flexibility is afforded by custom energy transfer coupler (ETC™) spikes, which can enhance stability on thick carpets, or create tighter coupling between subwoofer and floor to enhance overall sound quality.

BalancedForce 212

Press For BalancedForce 212

MartinLogan BalancedForce 212 subwoofer

"The BalancedForce 212s are so flexible that I can imagine them—used in almost any room, and with almost any speaker—restoring the tactile impact and low-end reach that other subs usually leave by the door... Whether or not you have MartinLogan speakers to pair them with, I strongly, strongly recommend the BalancedForce 212. It's definitely not a tubby thumper, and no imagination is needed, because nothing is missing. "

—Jon Iverson, Stereophile
Read the full review»


MartinLogan BalancedForce 212 Subwoofer

"The BF212 is one of those rare subwoofers that can be described as essential. It delivers uncompromised bass with clarity, accuracy, and an utter lack of colorations. Once it’s been tuned to a room with ML’s Perfect Bass Kit, there’s a high likelihood that you’ll never need another sub. Never… it is my judgment that the BalancedForce 212 is in a class with the best subs available to the home-audio enthusiast. The BF212 is one for the short list -- it’s required listening for anyone who’s dead serious about the low end. Highly recommended."

—Kevin East, SoundStage! Hi-Fi
Read the full review»


BalancedForce 212 Specifications

Specifications are subject to change without notice

Frequency Response

18–120 Hz ±3dB; Anechoic through LFE effects input

Impedance

RCA: 10,000 Ohms
XLR: 15,000 Ohms per phase
Speaker Level: 10,000 Ohms per phase (20,000 Ohms red to black) Compatible with 4, 6, or 8 Ohm rated amplifiers.

Low Frequency Transducer

Two 12" (30.5cm) cast-basket, highexcursion, aluminum cone with extended throw driver assembly, sealed non-resonant asymmetrical chamber format

Amplifier

2 x 850 watts
(3,400 watts peak system total)

Room Correction (Bass Section)

Perfect Bass Kit (PBK) Ready (Sold Separately)

Audio Controls

On, Auto (12V Trigger), Off

Low Pass Filter Frequency

30 - 80Hz

Inputs

RCA: Left, Right and LFE.
XLR: Left, Right and LFE.
Speaker Level: Left and Right banana jacks.
12V Trigger: 3.5mm
Mini USB (for PBK)
USB (for crossover & firmware updates)

Power Draw

Typical: 250 Watts
Idle: 30 Watts

Weight

140 lbs. (63.5 kg)

Dimensions

22.6" x 22.6" x 22.9 "
(57.4cm x 57.4cm x 58.2cm)

PBK Software + Calibration File

Each Perfect Bass Kit is shipped with a unique microphone. Please input the serial number found on your microphone to download the most recent version of PBK along with your microphone's unique calibration file:

S/N

The serial number is a six-digit number starting with "5", located on the bottom of the microphone

PLEASE NOTE: PBK software is for use with ONLY BalancedForce or Dynamo products. If you are setting up Masterpiece speakers, you will need use Anthem Room Correction (ARC) software, found here.

Troubleshooting & Support

The Perfect Bass Kit (PBK) is for use with any MartinLogan® subwoofer with a PBK Interface to correct the effects of room boundaries on sound quality. PBK uses proprietary processing to compute the subwoofer's in-room frequency response and then computes a target frequency response for the subwoofer to yield optimal in-room sound. PBK can be used with up to four MartinLogan subwoofers. The frequency response of each PBK microphone is measured precisely and this data is used to create the microphone's calibration file included on the PBK software disk. The microphone can ONLY be used with the matching individual calibration file.

System Requirements

Compatible MartinLogan Speakers

Service Advisory for PBK

June 12, 2013
1) PBK Microphone Recognition
2) PBK, Computer, and Operating System Compatibility
3) MartinLogan PBK and Paradigm PBK Are Not Interchangeable
4) PBK and other Room Correction Technologies

1. PBK Microphone Recognition: We have received several reports relating to PBK microphone setup/driver installation. The microphone occasionally fails to install the first time it is plugged into a computer. When the microphone is plugged in allow approximately 1-minute for the computer to automatically install the microphone drivers. If installation fails try the following:

a. Unplug the microphone and reattach it to the computer.
b. Connect the PBK and subwoofer USB cables to an external USB hub and then connect the USB hub to the computer.

2. PBK, Computer, and Operating System Compatibility: We recommend running MartinLogan PBK on Windows 10, Windows 8, Windows 7, Windows Vista or Windows XP (with Service Pack 2 or 3). PBK is currently not compatible with Apple Macintosh computers.

3. MartinLogan PBK and Paradigm PBK Are Not Interchangeable: The PBK systems (hardware and software) from MartinLogan and Paradigm Electronics are not interchangeable. MartinLogan PBK software contains specific information about MartinLogan subwoofers. Additionally, the drivers installed on the computer are brand specific and not interchangeable.

4. PBK and other Room Correction Technologies: MartinLogan's PBK™ (Perfect Bass Kit) is designed to adjust performance of specific MartinLogan subwoofers to reduce room induced bass anomalies. PBK is not a replacement for other room correction systems that are designed to optimize multi-channel audio systems. When beginning the task of optimizing an audio system's performance, the first step should always be proper setup of the front, center, and surround speakers. Proper setup of these speakers requires proper positioning, toe in, and (if available) adjusting other built-in controls. The next step should be running PBK to adjust the subwoofer's output to account for room interactions. After running PBK, the subwoofer's performance and integration with the main speakers should be optimized by adjusting the subwoofer's level, phase, low-pass filters, and other controls. Only after proper setup of speakers and subwoofer(s), including running PBK on the subwoofer(s), is it time to run your processor's full-range room correction system to enhance overall system performance within the room.
